Cross Roller Bearing Cross Reference Starting Point
Cross-reference helps start the review, but it is not final replacement approval. Send model evidence, dimensions, mounting details, application, and quantity before RFQ.
What to Send Before Cross-Reference Review
A clear request should show what is confirmed and what is still unknown.
Cross-Reference Validation Requirements
A cross-reference code is candidate evidence. TFL must verify dimensions, ring structure, preload, rigidity, mounting, speed, heat, and application condition before quotation.
Review full code, partial marking, catalog evidence, or photo
Similar codes can point to different structures, suffixes, or preload conditions.
Verify OD, ID, width, mounting holes, flange, and ring structure
Size match alone is not sufficient for replacement or interchange review.
Confirm torque behavior, runout, stiffness, and accuracy requirement
Preload mismatch can cause heat, loss of rigidity, or unstable motion.
Check machine type, load direction, speed, mounting, and environment
A candidate route can fail under real operating conditions even when dimensions appear close.
Cross-Reference Evidence Table
Use the available evidence to decide whether the request can move from candidate matching to engineering validation.
Cross-Reference Review Workflow
The workflow keeps model matching tied to dimensions and application context.
Collect old evidence
Send marking, photo, drawing, old order line, or installed bearing context.
Check dimensions
Confirm bore, OD, width, ring structure, mounting hole pattern, and suffix.
Review application
Add load direction, speed, rigidity, lubrication, and machine context.
Route to RFQ
TFL routes the request toward product, replacement, custom, or quote review.

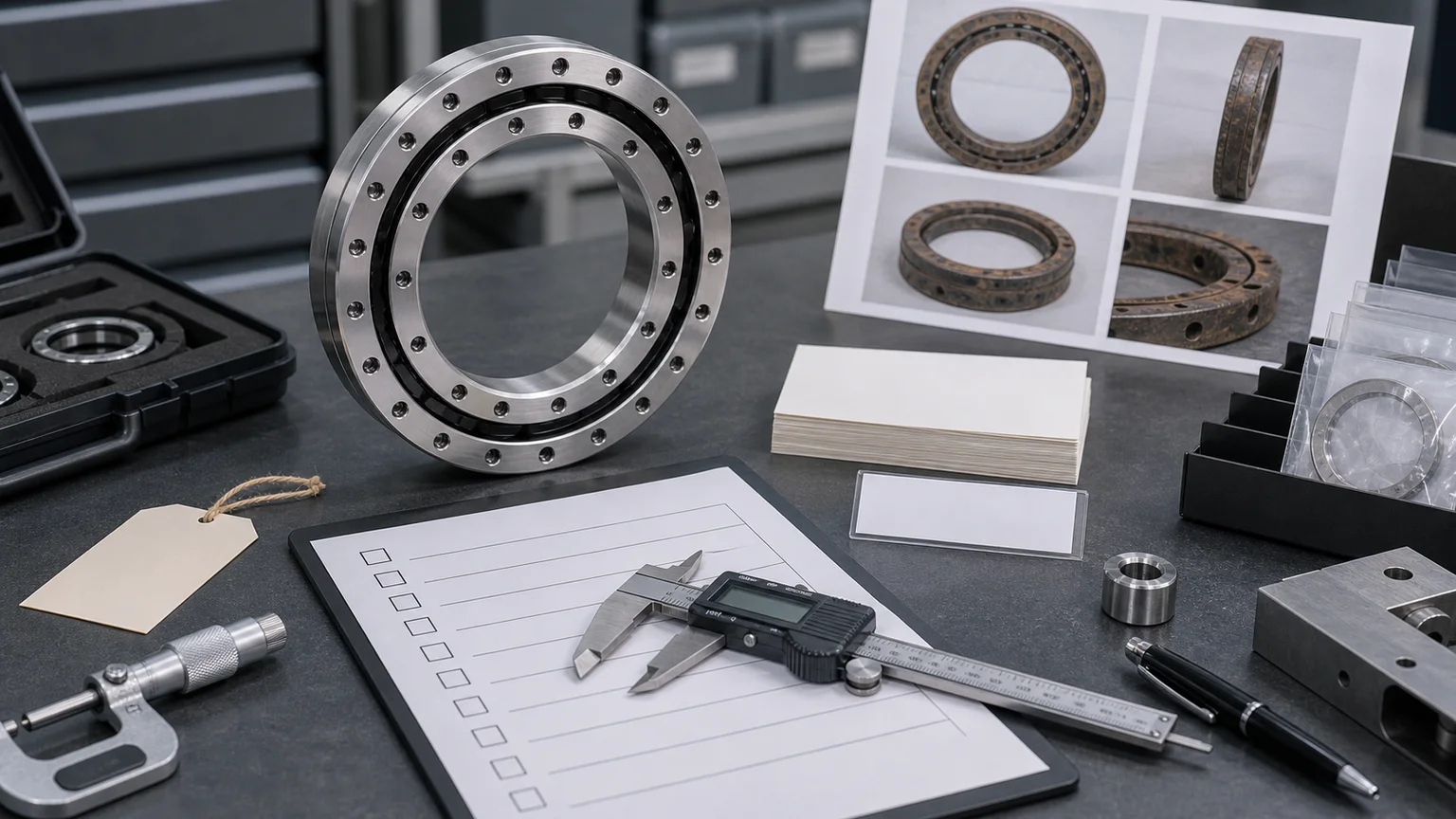

Cross-Reference RFQ Evidence Checklist
Send enough evidence to separate candidate matching from final fit validation.
Request Cross Reference Review- Original brand/model code or marking photo.
- Drawing, catalog page, installation photo, or measured dimensions.
- OD, ID, width, mounting holes, flange, and ring structure.
- Application, load direction, preload, speed, and environment.
- Quantity, target timing, and replacement urgency.
- Any known accuracy, runout, torque, or document requirement.
What a Cross Reference Can and Cannot Confirm
A cross reference can help TFL Bearings screen a possible replacement route, but it is not final interchange approval. Similar model codes may still differ in ring structure, mounting hole pattern, preload condition, accuracy grade, or application limits. Before quotation, TFL Bearings needs model evidence, measured dimensions, mounting details, and application context to confirm whether the request should move to product review, replacement review, custom review, or RFQ.
Similar model codes may still use different ring structures, mounting holes, or preload conditions.
Partial markings should be checked against photos, drawings, bore, OD, width, and application context.
Stock, price, lead time, and final interchange can only be reviewed after the candidate fit is validated.
Related Cross Roller Bearing Options
Final internal links are preserved so this hub can connect to product, supplier, and brand review routes.
FAQ
No. It is a starting point for technical review. Dimensions, mounting, accuracy, preload or clearance, load direction, and application still need review.
Send the model or marking, bore, outside diameter, width, mounting details, drawing or photos, application, quantity, and timing.
Yes. A drawing, sample photo, or measured bearing can support review when it shows mounting interface, ring structure, dimensions, and application context.
